【New】ALUCOMAT® A2

Introduction

Aluminium Composite Panels (ACP) have been our core business in the past 40 years.  In addition to the continuous improvement of surface enhancement and coating options, to follow the global trend of environmental protection and improve product fire performance we have evolved and upgraded the ACP structure and launched two new products under the ALUCOMAT® A2 series.  They are Corrugated-Aluminium-Cored ACP and Embossed-Aluminium-Cored ACP, which replace the plastic core of the first generation of ACP with corrugated or 3D-embossed aluminum alloys.  Such new constructions of materials reveal the advantages of lighter weight, better fire resistance, and easier recycling, which are advanced solutions for new and refurbished interior & exterior claddings of commercial & industrial buildings.

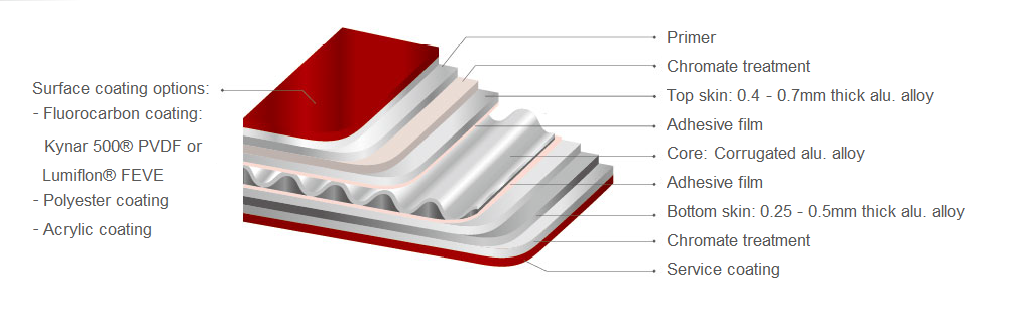

ALUCOMAT® A2 Corrugated-Aluminium-Cored ACP

A2 Corrugated ACP

Specifications

Since ALUCOMAT® is world’s pioneer of aluminium composite panel since 1966, ALUCOMAT® A2 specifications are world specifications:
Standard Size 4mm x 1,220mm x 2,440mm
Available Width 1220mm、1250mm、1500mm
Length Upon Request
Surface Enhancement Coating options :
- Fluorocarbon coating
  Kynar 500® PVDF or
  Lumiflon® FEVE or
- Polyester coating
- Acrylic coating
Core Corrugated alu. alloy
Customization Custom colors, patterns, length welcome
MOQ 900m2 per color/width

ALUCOMAT® A2 Embossed-Aluminium-Cored ACP

A2 Embossed ACP

Specifications

Since ALUCOMAT® is world’s pioneer of aluminium composite panel since 1966, ALUCOMAT® A2 specifications are world specifications:
Standard Size 4mm x 1,220mm x 2,440mm
Available Width 1220mm、1250mm、1500mm
Length Upon Request
Surface Enhancement Coating options :
- Fluorocarbon coating
  Kynar 500® PVDF or
  Lumiflon® FEVE or
- Polyester coating
- Acrylic coating
Core Embossed alu. alloy
Customization Custom colors, patterns, length welcome
MOQ 900m2 per color/width

Features

  • Retaining excellent flatness & rigidity of traditional ACP
  • Conforming to European fire standard EN13501-1 Class A2
  • Corrugated & embossed structure of aluminium core significantly reduces total panel weight
  • Full aluminium composition, easier to recycle and more environmentally friendly
  • Easy to fabricate & install by routing & folding process

Comparison of Cladding Materials

Item Thickness Weight
(kgs/m2)		 Flatness Fire Performance According to EN13501-1
Regular ACP 4mm 5.4 - 6.0 Excellent Class B
Solid Aluminium 3mm 7.7 - 8.5 Fair Class A2
Embossed-Aluminium-Cored ACP 4mm 3.7 - 4.7 Excellent Class A2
Corrugated-Aluminium-Cored ACP 4mm 3.9 - 4.9 Excellent Class A2

Applications

  • Curtain Walling
  • Exterior Façade Cladding
  • Display & Shopfront Decoration
  • Balcony & Canopy Cladding
  • Signage & Commercial Advertising
  • Interior Wall Cladding
  • Partitioning Decoration
  • Ceiling
  • Elevator & Escalator Cladding
  • Bus & Coach Lining

Processing

Edge Bending

A2 Bending Folding

Total Solution Family

A wide variety of surface enhancement and coating system may be selected to combine into new creation of A2 core diversity.  Most of the exterior series, such as ALUCOMAT®, ALUCOMAT® Solid & Metallic, Hi-Gloss & Vivid, Texture, Ti-Zinc, Brushed, Terracotta, Chameleon, Sparkling, may be upgraded into A2 class.

Color Chart

Selected standardized colors are available below for viewing below. Due to color reflection difference on computer monitor, please request actual sample swatch before placing order.
