ALUCOMAT® Wave

Introduction

ALUCOMAT® is world’s original ALUminium COmposite MATerial (ACM) Total Solution provider, the material is later known as Aluminium Composite Panel (ACP).


It Isn’t Colored Steel Sheet, It’s ACM

ALUCOMAT® Wave is our lastest R&D imagination ideal for modernizing flat and plain cladding surface into post-modernist simplicity. Inspired from traditional contoured steel roofing and walling sheets, the ACM (ACP) from ALUCOMAT® offers three selections of shape which imitates live ocean waves. Available metallic colors also perfectly reflect profound yet low-profile characteristics of architects and designers.

As an extension from ALUCOMAT® FR which composed of a certified fire resistant mineral filled core and two rigid top-grade aluminium sheets, ALUCOMAT® Wave preserves equally outstanding quality available to existing ALUCOMAT® Exterior Solution family.

Specifications

Since ALUCOMAT® is world’s pioneer of aluminium composite panel since 1966, ALUCOMAT® Wave specifications are world specifications:
Alloy 0.50 mm top-grade, virgin aluminium sheet on each face, refinery certification provided
Coating Wave patterned undulation with solid or metallic Kynar 500® PVDF based fluorocarbon coating
Core 3 mm fire resistant mineral filled core certified under ASTM E 84 / E 119, BS 476 part 6 / 7, DIN 4102 part 1 standards
Thickness 4.00 mm
Width 1,220 mm
Length 2,440 mm
Custom Thickness 4.0 ~ 8.0 mm
              Width 1,250 / 1,500 mm
              Length On demand

Fire Resistance

By replacing class 1 fire resistance mineral filled core with LDPE core, ALUCOMAT® Wave will become standardized ALUCOMAT® panels with contoured wavy grooving enhancement on the outer surface.

Total Solution Family

ALUCOMAT® Wave is more than a piece of panel. It may come with a variety of different alloy types and thickness, as well as coating systems to better suit different application needs. Please select an appropriate one listed on the right menu or directly below:
Variations Alloy Coating System Core Material
Interior Wave 0.20 mm Exterior-class high performance polyester LDPE, RoHS compliant

Custom Color & Pattern

Please contact us to Request a Custom Color Matching. Limits applied.

Color Chart

Selected standardized colors are available below for viewing below. Due to color reflection difference on computer monitor, please request actual sample swatch before placing order.

  • Silver Metallic FRV4054
    Silver Metallic
    FRV4054

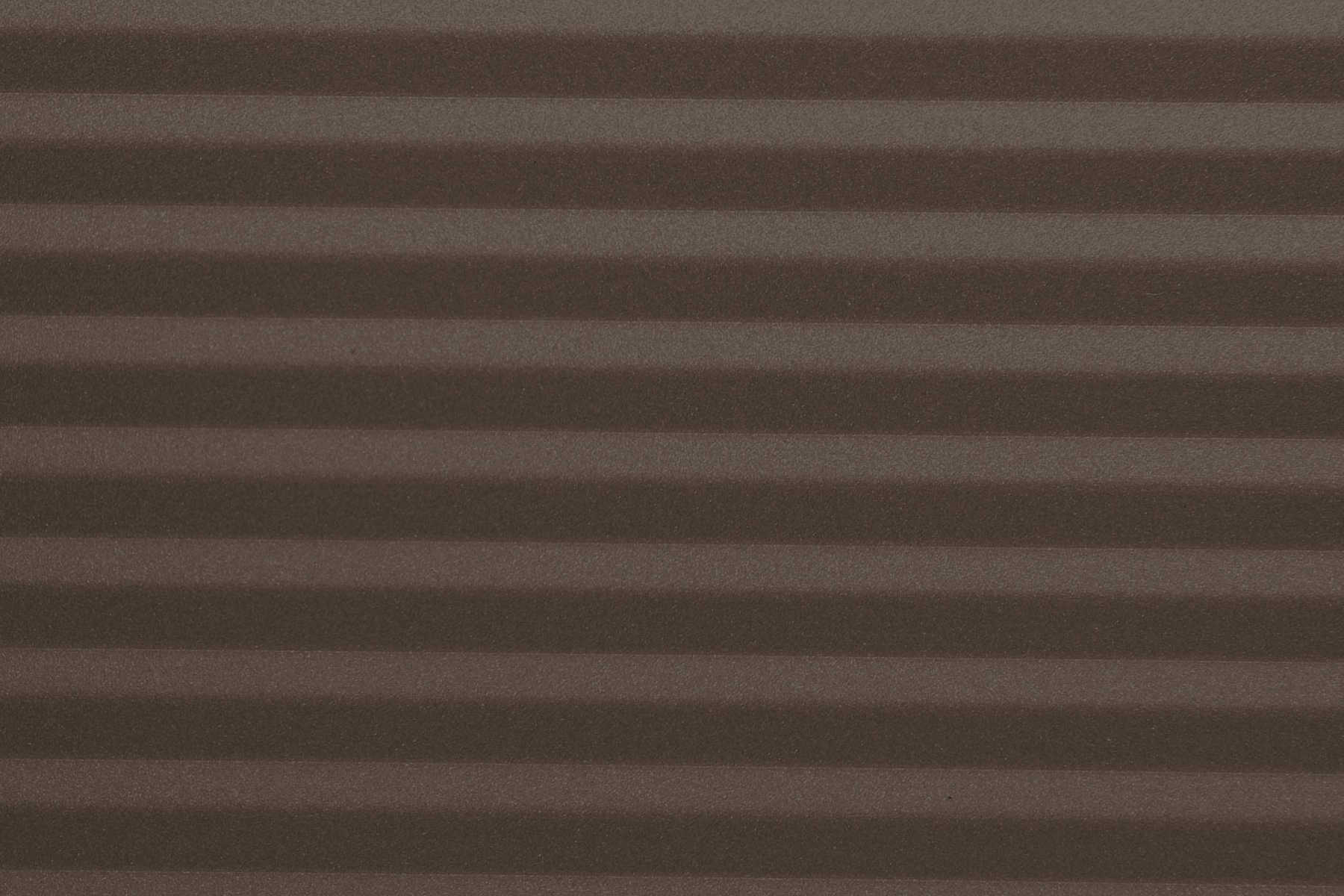

  • Iron Sand Gray FRV4075
    Iron Sand Gray
    FRV4075
  • Pearl Maize Yellow KFW4041
    Pearl Maize Yellow
    KFW4041
  • Pearl Cinnamon KFW4049
    Pearl Cinnamon
    KFW4049
