ALUCOMAT® Terracotta

Introduction

ALUCOMAT® is world's original ALUminium COmposite MATerial (ACM) Total Solution provider, the material is later known as Aluminium Composite Panel (ACP).


Modern & retro. emerging the craft from the ancients

ALUCOMAT® Terracotta is an innovative solution for restoring ancient ways in contemporary architectural atmosphere. With unique coating technique, JSN, as a pioneer of new finish developer, has successfully re-established the feature of terra-cotta onto the lightweight and highly formable ALUCOMAT®. A brand-new choice is now offered to architects & building owners who are tired of ordinary solid & metallic coating finishes. With ALUCOMAT® Terracotta we witness the perfect combination of ancient and modern styles.

As an extension from ALUCOMAT® FR which composed of a certified fire resistant mineral filled core and two rigid top-grade aluminium sheets, ALUCOMAT® Terracotta preserves equally outstanding quality available to existing ALUCOMAT® Exterior Solution family.

Specifications

Since ALUCOMAT® is world’s pioneer of aluminium composite panel since 1966, ALUCOMAT® Texture specifications are world specifications:
Alloy 0.50 mm top-grade, virgin aluminium sheet on each face, refinery certification provided
Coating Natural terracotta texture finished with Lumiflon® FEVE based fluorocarbon coating, 7,000 hours QUV test passed
Core 3 mm fire resistant mineral filled core certified under ASTM E 84 / E 119, BS 476 part 6 / 7, DIN 4102 part 1 standards
Thickness 4.00 mm
Width 1,220 mm
Length 2,440 mm
Custom Thickness 4.0 ~ 8.0 mm
              Width 1,250 / 1,500 mm
              Length On demand

Fire Resistance

By replacing class 1 fire resistance mineral filled core with LDPE core, ALUCOMAT® Texture will become standardized ALUCOMAT® panels with Terracotta enhancement on the outer surface. TOP

Custom Color & Pattern

Please contact us to Request a Custom Color Matching. Limits applied.

Color Chart

Selected standardized colors are available below for viewing below. Due to color reflection difference on computer monitor, please request actual sample swatch before placing order.

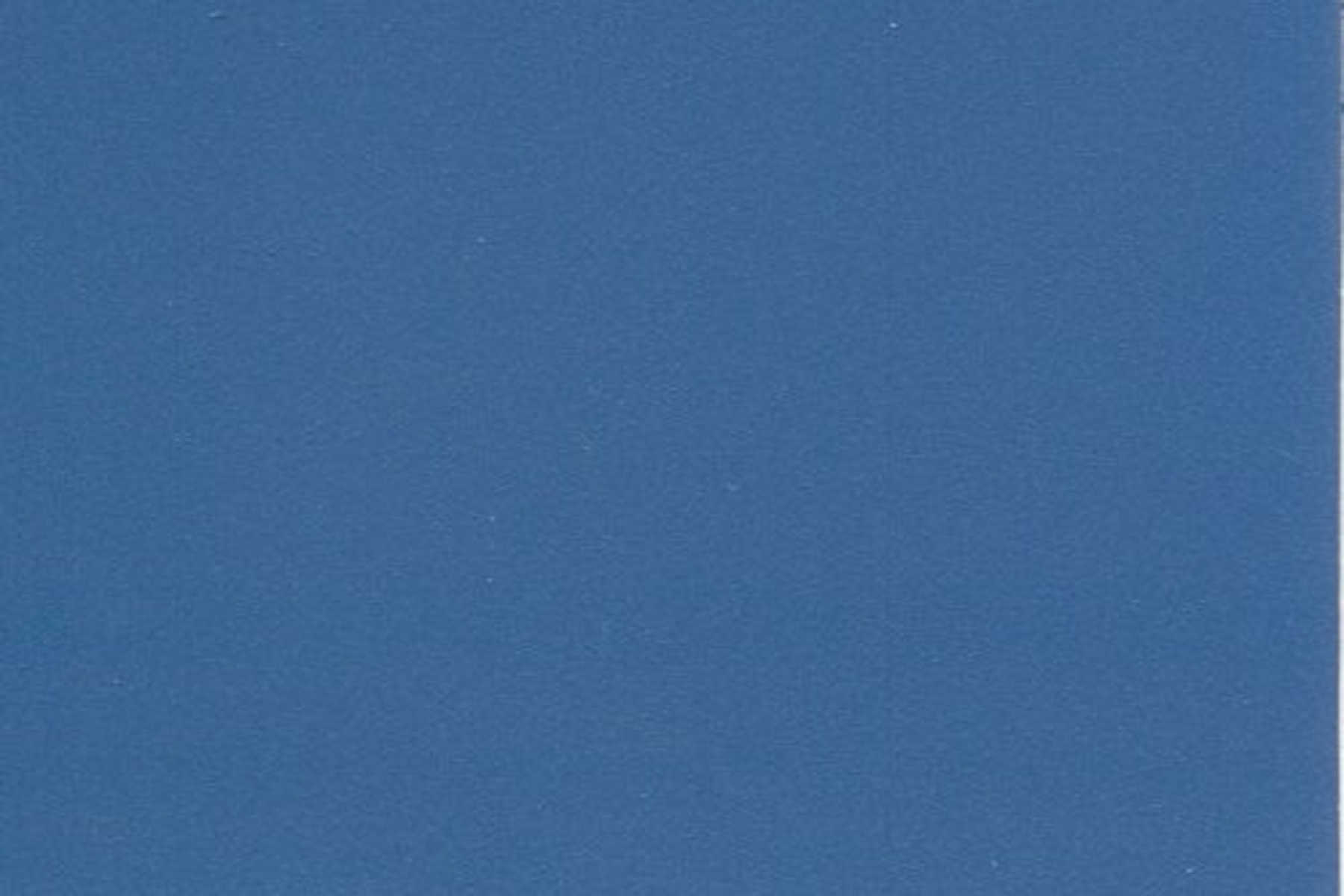

  • Blue TC4022
    Blue
    TC4022

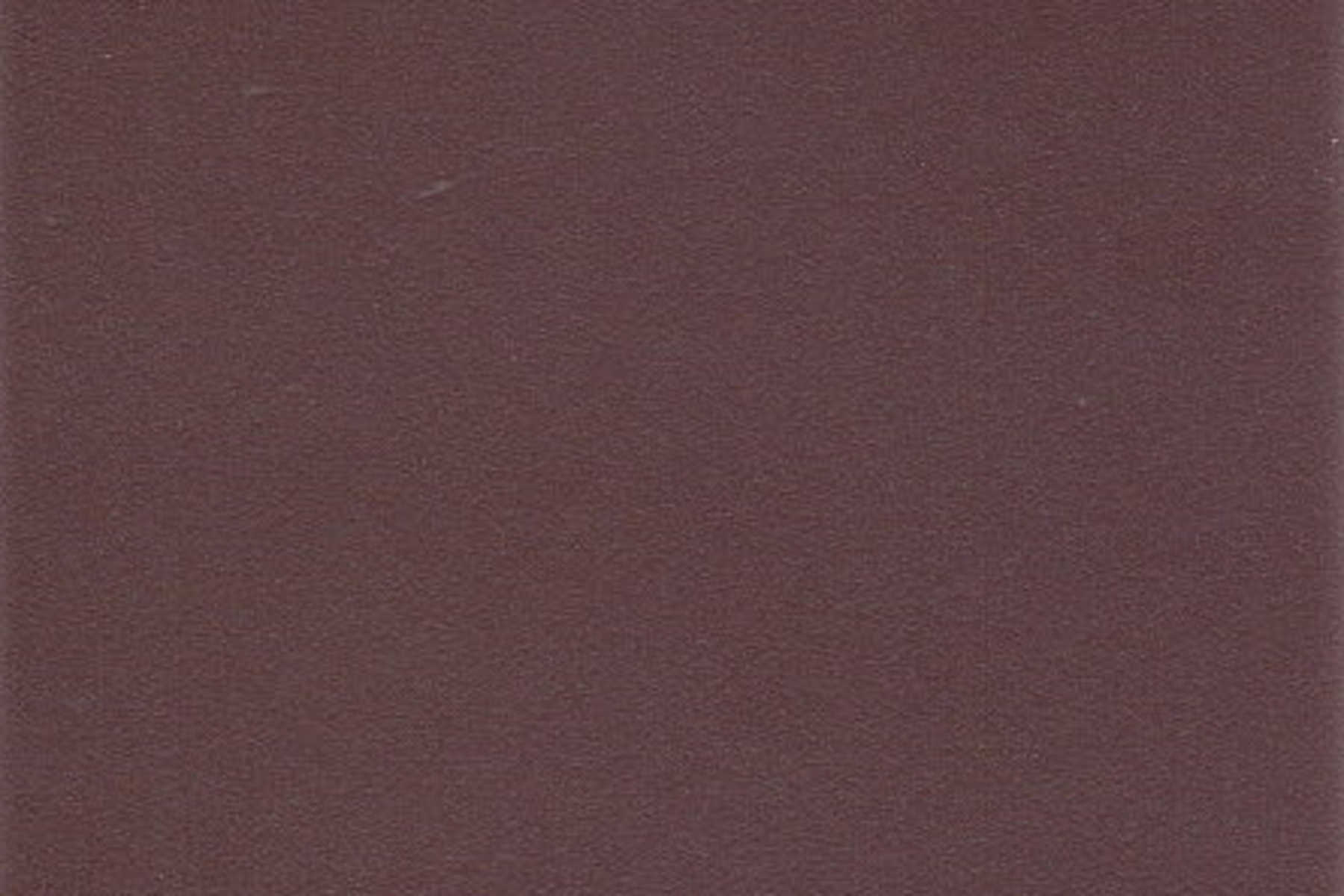

  • Brown TC4023
    Brown
    TC4023

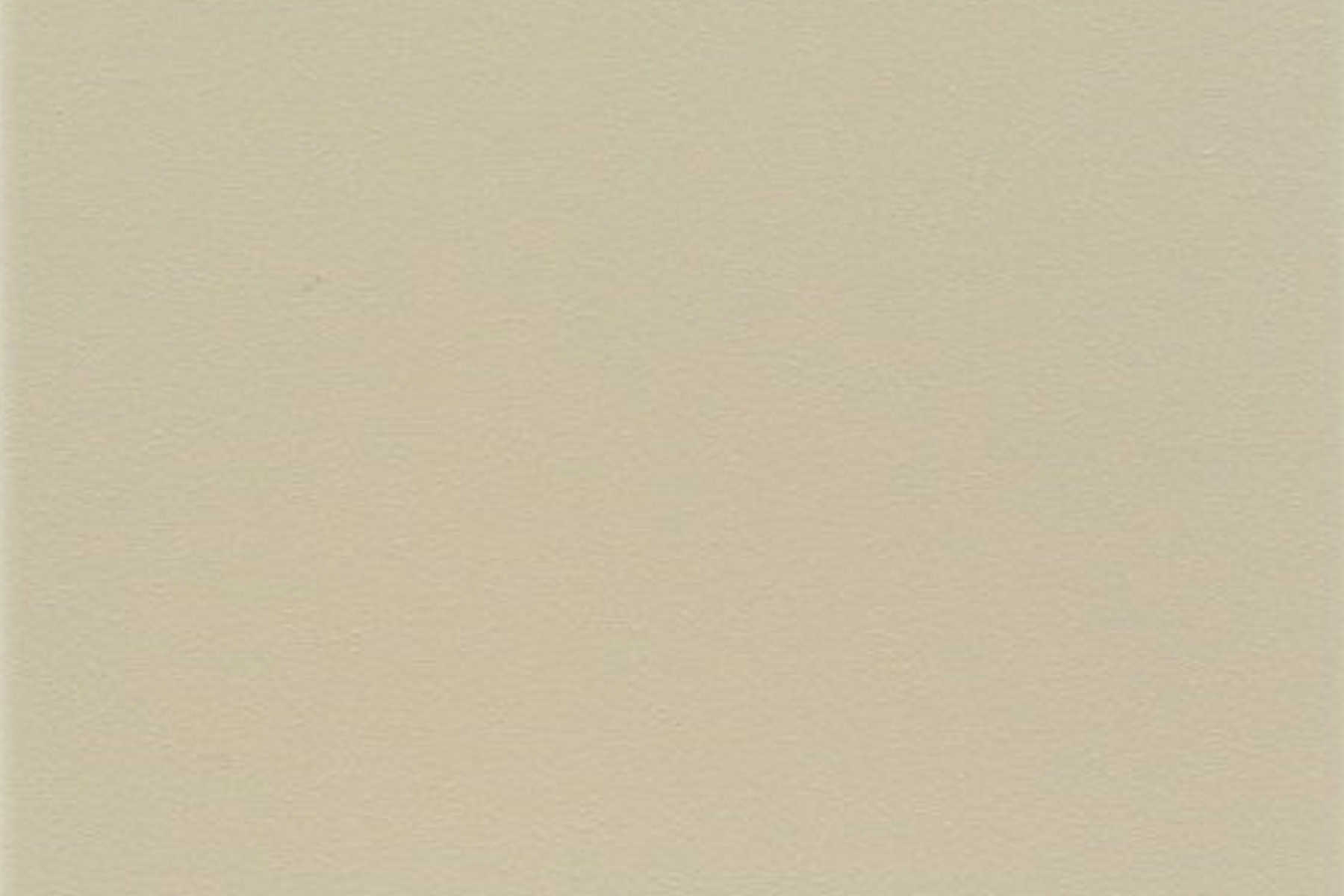

  • Beige TC4024
    Beige
    TC4024

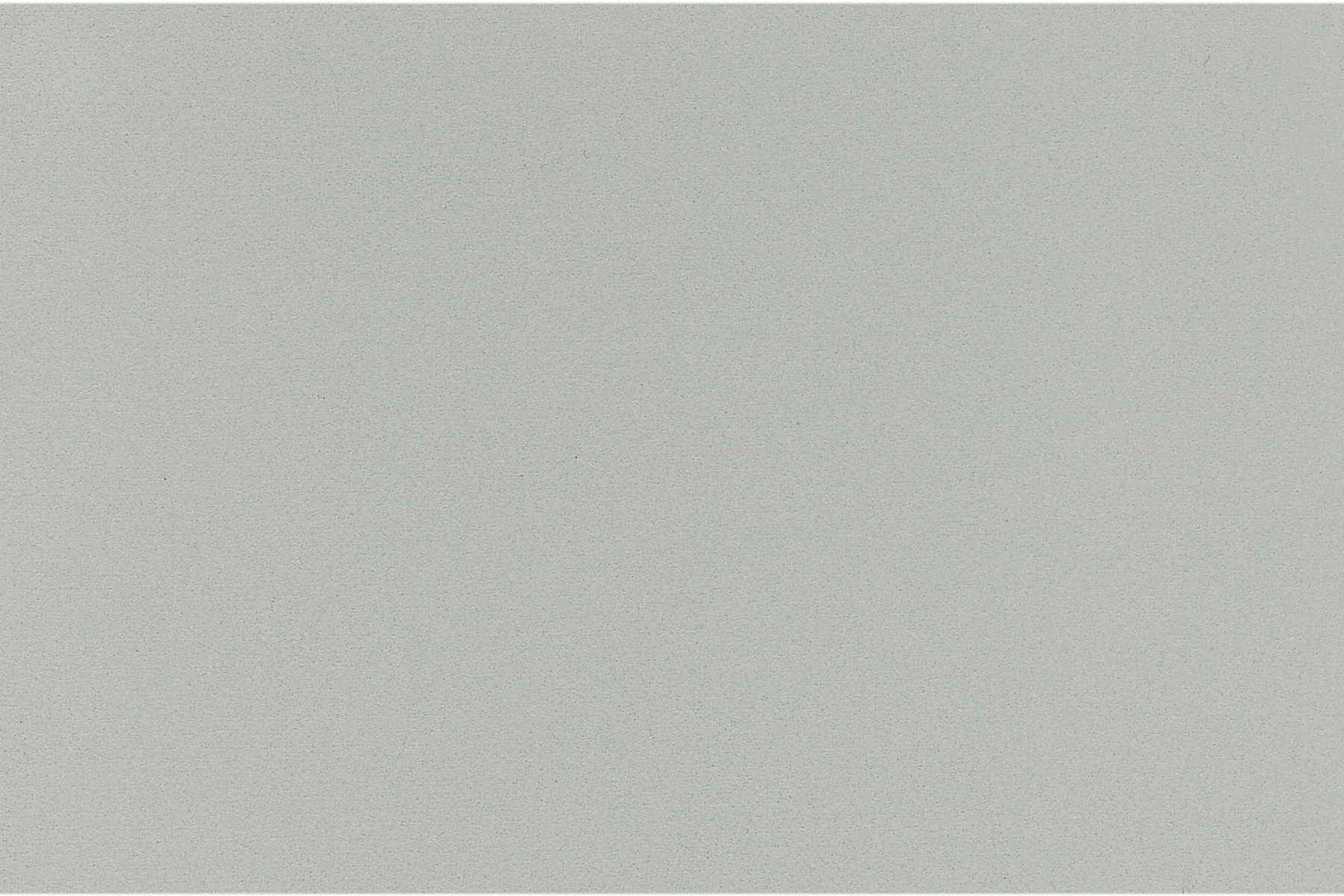

  • Silver TC4025
    Silver
    TC4025
